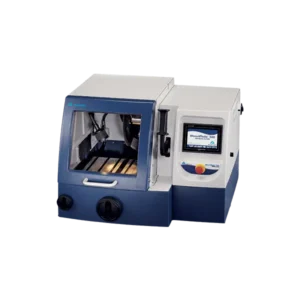

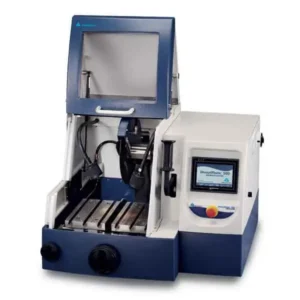

AbrasiMatic 300
AbrasiMatic 300 Abrasive Cutter by Buehler is a versatile, high-performance cutting solution designed for manual and automatic sectioning of a wide variety of materials. With advanced features like dual cutting modes, XYZ axis movement, and a powerful 5Hp motor, this abrasive cutter is ideal for laboratories, manufacturing, and research facilities that demand precision and efficiency in metallographic sample preparation.
Key Features of AbrasiMatic 300
-
Dual Cutting Modes
Offers both manual and automatic cutting options, providing unmatched flexibility for diverse sample materials and geometries. -
XYZ Axis Movement for Precision Cutting
Standard Y and Z-axis movement ensures precise sectioning, with an optional X-axis for serial cutting, making it ideal for repetitive tasks. -
Large 12-Inch Blade Capacity
Accommodates blades up to 12 inches [305mm] in diameter, enabling sectioning of samples up to 4.375 inches [110mm] in diameter. -
High-Performance Motor
Powered by a robust 5Hp [3.7kW] motor, the AbrasiMatic® 300 delivers superior cutting torque, ensuring efficient processing of hard and challenging materials. -
User-Friendly Touchscreen Interface
Features an intuitive touchscreen control panel for easy setup and operation, allowing users to adjust cutting parameters with precision. -
Enhanced Visibility and Safety
Includes a large viewing window with adjustable LED lighting, a retractable hood, and safety interlocks, ensuring operator safety during cutting operations. -
Quick Cleaning and Maintenance
Equipped with a washdown hose for fast cleanup and a catch basket for easy retrieval of sectioned parts, minimizing downtime.
Applications of AbrasiMatic 300
- Metallographic Sample Preparation: Ideal for cutting metals, alloys, composites, and other materials for testing and analysis.
- Failure Investigation: Prepares precise sections for detailed examination of material defects or fractures.
- Routine Laboratory Work: A versatile machine for consistent and efficient sample preparation.
- Research and Development: Supports advanced cutting techniques required in R&D projects.
Specifications
| Feature | Details |
|---|---|
| Voltage Options | 230VAC, 60Hz; 460VAC, 60Hz; 220VAC, 50Hz; 380VAC, 50Hz (3 Phase) |
| Power Consumption | 4.0kW |
| Motor Power | 5Hp [3.7kW] |
| Sound Rating | 78dBA (no load) |
| Recirculation Tank Capacity | 22 gallons [83 liters] |
| Lighting | Two LED Goosenecks |
| Abrasive Wheel Diameter | Maximum 12 inches [305mm]; Arbor size 1.25 inches [32mm] |
| Cutting Chamber Dimensions | 36 W x 22 D x 8 H inches [914 x 558 x 203mm] |
| Auto Y-Axis Feed Rate | 0.7-5 in/min [0.3-2mm/sec] |
| Maximum Cut Diameter | 4.375 inches [110mm] |
| Wheel Speed | 2600rpm @ 50/60Hz; 8200 surface ft/min [2700 surface m/min] |
AbrasiMatic 300 Ordering Information
| Part Number | Voltage | Cutting Axes |
|---|---|---|
| 10-2190-260 | 200-240VAC, 60Hz | Y and Z Axes Cutting |
| 10-2190-460 | 440-480VAC, 60Hz | Y and Z Axes Cutting |
| 10-2190-250 | 200-240VAC, 50Hz | Y and Z Axes Cutting |
| 10-2190-400 | 380-400VAC, 50Hz | Y and Z Axes Cutting |
| 10-2193-260 | 200-240VAC, 60Hz | Additional X Axis Cutting |
| 10-2193-460 | 440-480VAC, 60Hz | Additional X Axis Cutting |
| 10-2193-250 | 200-240VAC, 50Hz | Additional X Axis Cutting |
| 10-2193-400 | 380-400VAC, 50Hz | Additional X Axis Cutting |
