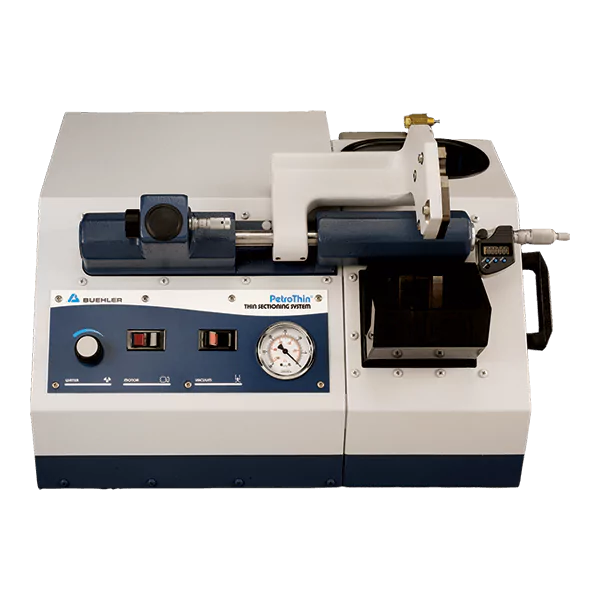

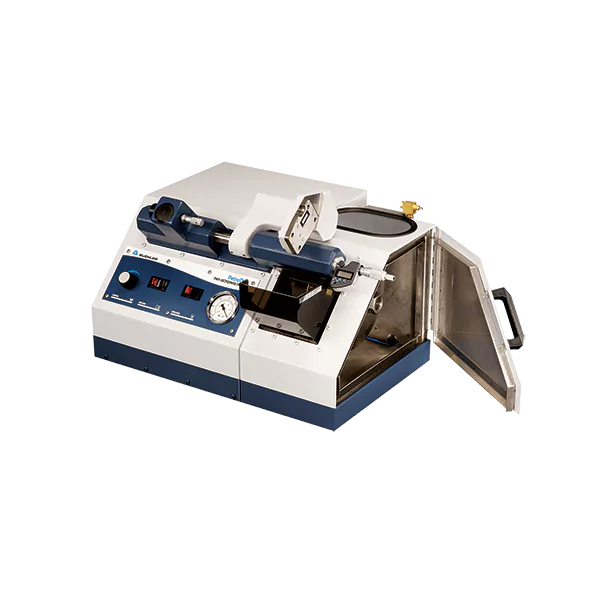

PetroThin Thin Section Machine
The PetroThin® Thin Section Machine is a versatile, 8-inch [203mm] tabletop cutter and grinder, specifically designed for crafting thin sections from a wide variety of materials such as bone, ceramics, concrete, and petrographic samples. This machine offers high-precision cutting and grinding, allowing users to achieve results that conventional sectioning equipment cannot deliver. The PetroThin is equipped with a diamond blade for re-sectioning and a cup grinding wheel for creating ultra-thin sections. For optimal performance, complement your PetroThin with Buehler’s high-performance diamond/CBN blades and cup grinding wheels.
Key Features of PetroThin Thin Section Machine
High-Quality Thin Sections:
- PetroBond apparatus simplifies sample mounting and prepares them for processing.
- Precision blade sections larger samples down to size, ready for grinding.
- Cup grinding wheel creates ultra-thin sections for detailed analysis.
Precision Control:
- Precision micrometer for gradual material removal, ensuring consistent creation of thin sections.
- Vacuum pump arm for quickly securing samples in place during processing.
- Seamless transition of the sample arm between cutting and grinding positions.
Enhanced Monitoring:
- Complement with the PetroVue thin section viewer, which uses polarized light for real-time monitoring of sample thickness and uniformity.
Applications of PetroThin® Thin Section Machine
-
Geology and Petrography:
- Ideal for preparing petrographic samples for examination, providing high-quality thin sections essential for geological studies.
-
Material Science:
- Perfect for sectioning a variety of materials including ceramics, concrete, bone, and more, allowing detailed analysis of microstructure.
-
Academia and Research:
- Supports academic research, allowing users to prepare thin sections of complex materials for detailed scientific analysis.
-
Environmental Analysis:
- Facilitates environmental studies by enabling precise cutting of samples such as soil and rock, aiding in contamination and composition analysis.
Consumables and Accessories of PetroThin
Continuous Rim Diamond Blade
8 x 0.045 x 1in [203 x 1 x 25mm]
Diamond Cup Grinding Wheel
8 x 0.25 x 1in [203 x 6 x 25mm]
Dressing Stick
0.5 x 0.5 x 4in [13 x 13 x 102mm]
PetroVue Thin Section Viewer
Thin section viewer for monitoring sample thickness.
PetroBond Mounting Apparatus
Mounting apparatus for effective sample preparation.
Flange Sets for Sectioning
Flanges for precision machines ensuring accurate sectioning.
| Part Number | Voltage |
|---|---|
| 38-1450-160 | 115VAC, 60Hz |
| 38-1450-250 | 220VAC, 50Hz |
| Feature | Details |
|---|---|
| Voltage/Frequency | 115VAC @ 60Hz, 220VAC @ 50Hz, 1 phase |
| Motor Power | 1/3 Hp [250W] |
| Wheel Diameter | 8in [203mm] |
| Precision Grinding | ±5µm |
| Wheel Speed | 38-1450-160: 220rpm 38-1450-250: 2100rpm |
| Compliance | CE |
